Separation of Mixtures: Physical Change versus Chemical
Dr.Walt Volland, All rights reserved copyright 1998-2011
Be sure to read the entire experiment before starting. Revised October 4, 2011
Materials | Description | Filtration procedure | |
Rf calculation maximum Rf | Animation of chromatogram | Solvent front |
Submit report in Angel classroom using the equiz for the lab.
Most materials in our world are mixtures. Very few materials are pure substances. The art of separating mixtures is important because it enables us to isolate pure substances. Mixtures are either homogeneous or heterogeneous. Homogeneous mixtures are uniform in composition. Heterogeneous mixtures are not. Salt water is a mixture of water and NaCl and is homogeneous if thoroughly mixed, with all the salt dissolved. Oil in water is a heterogeneous mixture. Both types of mixtures can be separated into their component parts by physical means. A salt water mixture can be separated by distilling or evaporating the water and collecting the salt residue. An oil and water mixture will separate into an oil layer and a water layer because the materials are not attracted to one another and gravity "pulls" the denser water beneath the less dense oil. Settling, filtration, chromatography, and manual methods are all means of separating the components of a mixture. Choice of method depends on the type of mixture and the characteristics of its components. A heterogeneous mixture of solid and liquid or solid and gas is usually fairly easy to separate because of the 2 different physical phases. The solid may settle out, allowing you to pour off the liquid. Or, maybe the liquid can be evaporated, leaving the solid behind. Or the mixture can be poured through a filter, catching the solid on the filter and allowing the liquid or gas to pass through. We use filtration frequently--in our coffee makers, automobile fuel lines, automobile air cleaners to name only a few examples. A mixture of two or more solids is usually separated by utilizing the different chemical or physical properties of the substances. For example, a heterogeneous mixture of red M&M's and yellow jellybeans can be separated using the different colors or the different shapes of the solids. The parts of the mixture are large enough to be separated manually. A mixture of black peppercorns and white table salt might be separated this way as well. But what could be done with a mixture of sand and sugar? True, you could get a magnifying glass and tweezers and try picking out the grains of sand, but is there an easier way? Is there some property that sugar has that sand does not (or vice versa)? Could this be used to separate sand and sugar? If you said that sugar dissolves in water and sand does not, you are on the right track. Homogeneous mixtures of a solvent and one or more solutes (dissolved substances) are often separated by chromatography. Chromatography works to separate a mixture because the components of a mixture distribute themselves differently when they are in contact with a "two phase system". One phase is stationary and the other is moving or mobile. The stationary phase may be a solid packed in a tube or a piece of paper. The mobile phase may be liquid of gaseous. Food colorings are one example, a homogeneous mixture of a solvent and a single dye or combination of selected dyes that produce the desired color. Chromatography
Paper chromatography is a modern method used separate mixtures. Paper chromatography uses paper as the stationary phase and a liquid solvent as the mobile phase. You will use paper chromatography to test food colorings to see if the color results from a single dye or mixture of dyes. If you cannot get food coloring you can use colored felt pens or other water soluble coloring pens. Your exercise is simple but uses very essential principles. An optional part of the activity is to check a household product for the presence of the same dyes that are in food coloring. The technique relies on the idea that the solvent and the paper both have an attraction for the components in a mixture. The solvent creeps along the surface of the paper. If a material is placed on one spot on the paper and is soluble in the liquid solvent, the material will be dissolved when the solvent moves over it. The material will move along with the solvent. Each compound in a mixture will have its own characteristic balance of attractions to solvent and to paper, so all will not move at the same speed. Eventually this difference in speed will separate the compounds. In paper chromatography when the conditions are kept constant, a particular compound always travels a fixed percentage of the distance traveled by the solvent front. The ratio of the distance the compound travels to the distance the solvent travels is called the Rf value. The symbol Rf stands for "retardation factor" or "ratio-to-front". It is expressed as a decimal fraction. When the conditions are duplicated, the same average relative positions will turn up for the solvent and solute; thus the Rf value is a constant for a given compound. The Rf value is a physical property for that compound. The Rf value is useful in identifying compounds, but other properties should be used in combination with the Rf value to confirm compound identification. Since it is difficult for different laboratories to exactly duplicate conditions for a chromatography experiment, Rf values are more useful for comparisons within one lab than for comparisons of data from different labs. Substances that are not colored can also be separated by chromatography. They are detected using ultraviolet or black light. These substances appear to glow in the dark. This animation ( be sure to watch animation) shows what happens to a mixture of two dyes. The green and yellow dyes can be separated. The green dye moves along with the solvent better than the yellow dye. The mixture is separated into two "spots". There are two substances in the mixture. The Rf for the yellow dye is about 0.5 while the Rf for the green dye is about 0.8.The yellow dye moves half as far as the solvent front. Water can be used as a solvent but so can other liquids if need be. return to top of page ![]() The illustration below shows the progress of the solvent and a solute containing only one dye. The solvent moves along the paper and the solute typically trails behind. The solute spot in the illustration appears to travel about half the distance of the solvent. The Rf value would be about 0.5 return to top of page
. |
Materials
Schilling® Assorted Food Colors (or other brand): red, blue, green and yellow. |
plastic 2-liter pop bottle with top cut off or tall glass or jar (save the top section of the 2-L bottle) |
small plastic cups or glass jars or glass plate |
white paper coffee filter, size 4 or larger |
toothpicks |
scissors |
2 pencils |
Scotch® tape |
Procedure
Please read the entire experiment procedure before startingreturn to top of page
Cut a half inch wide (1.25 cm) strip of coffee filter paper about four inches long (10 cm ). Make 5 or more of these strips. You can get 8 strips from the two sides of a #4 or larger cone filter. |
Make a start line with pencil mark at half an inch from one end of the paper strip; this will be the bottom. Do this with each strip. |
Top
Bottom
![]()
1. Place about 5 drops of blue food color in a disposable plastic cup, a small glass container or on a glass or ceramic plate.
2. Cut off one end of a toothpick. Dip the fresh cut end into the food coloring.
3. Use the toothpick to place a dot of blue food color on the pencil mark start line and allow it to dry. The dot should be about a millimeter across.It should be about the size of this dot.
4. Attach a piece of tape to the top end of the strip of paper. Tape the paper to the pencil and lower the paper into the plastic bottle or tall glass jar. Check how far the paper projects into the container. On the outside of the bottle or jar, mark the position of the bottom edge of the paper by writing on a piece of Scotch tape stuck to the jar. Remove the pencil and paper.
5. Add water to container so the water level will touch the bottom of the strip of paper; the water level needs to be well below the pencil mark start line on your strip of paper and at least 1/4 inch below the blue spot.
6. Lower the paper into the bottle so the water touches the bottom of the paper. water must NOT touch the blue spot of food color.

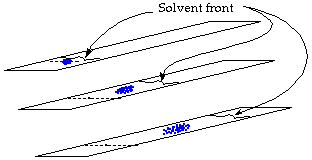

7. Let the water wick (climb) up the paper. Note where the water wets the paper; the top of the wet area is the "solvent front". The water will climb the first few centimeters quickly. The food color will probably trail behind the water. 8. When the front edge of the water reaches three fourths of the way up the paper remove the paper from the bottle or glass jar. Use a pencil (not a pen) to mark the front edge of the solvent. Allow the paper to dry. Use the pencil to mark the "center of gravity" of the dye spot. The "center of gravity" of the dye spot is its "average" position on the paper. 9. Note if more than one color appears on the paper. If so, find the "center of gravity" for each dye. 10. Measure the distance between the start line (where the blue spot was placed) and the mark for the upper edge of the solvent front. Record this distance. Measure the distance between the start line and the "center of gravity" of the color. Record this distance. 11. Repeat steps 1 through 10 using the yellow food coloring. Repeat twice more, using the green food coloring and then the red food coloring. Record your observations and measurements on the Report Sheet. |
Mix 5 drops of each of the food colors in a disposable cup, small glass jar or in a puddle on your plate. Stir the mixture and allow it to stand for about ten minutes. This lets some of the solvent evaporate and the mixture will be more concentrated, making the colors easier to see. Repeat steps 1 through 10 above to record a chromatogram for the mixture of the 4 food colors. Record your observations and measurements on the Report Sheet. |
Components of a mixture can also be separated using methods of filtration and/or evaporation. If the evaporation is carried out so that the solvent is collected as well, the method is called distillation. In this activity you will make a mixture of salt and ground pepper. You will dissolve the salt portion of the mixture in water, filter to recover the pepper, and then evaporate the water to recover the salt. These methods are probably more familiar to you than is chromatography since we often filter liquid mixtures to remove undissolved particles. Can you name two examples of filtration (other than the ones already mentioned in this lab) that you encounter in your activities? List these on the Report Sheet, along with a brief description of each. |
1/2 teaspoon ground black pepper |
1/2 teaspoon table salt |
2 jars or glasses, able to hold 2 cups of liquid each |
white cone coffee filter |
a funnel or the top you cut off the 2-L plastic bottle |
spoon or other item for stirring |
Place 1/2 teaspoon of ground black pepper in the first jar of glass (jar #1). |
Add 1/2 teaspoon of table salt to this same jar. |
Add about 1 cup of tap water to the salt and pepper and stir to completely dissolve the salt. |
Place a coffee filter in your funnel or the cut-off top of your 2-L bottle. |
Support the funnel in the top of the second jar or glass (jar #2). |
Bottle with "funnel" and filter paper
Open the filter and wet it by pouring about 1/4 cup of water into its center. Be sure the water runs into jar #2. |
Pour the water-salt-pepper mixture into the filter paper cone. |
Use about 1/4 cup more water to rinse out jar #1 so you wash out all the pepper. Pour this water-pepper mixture into the filter cone and collect this liquid in jar #2 also. |
Remove the funnel and filter paper from jar#2. Set the paper aside to dry. Then observe its appearance. |
Pour the liquid from jar #2 into a small saucepan; rinse jar #2 with 1/4 cup more water and add this to the saucepan, too. |
Gently bring the liquid in the pan to a boil on your stove. Boil until only a few teaspoons of liquid remain in the saucepan. Turn off the burner and allow the rest of the liquid to evaporate. |
When the pan's contents are dry, note the appearance and the amount of solid in the pan on your Report Sheet. |
Use the equiz to submit your lab report. Refer to your report sheet to complete the equiz.
Name __________________ |
Brand name for food colors used in experiment if not Schilling. ________________ |
Food color |
Colors observed in chromatogram for each dye(on paper) |
Blue |
___________________________________________ |
Yellow |
___________________________________________ |
Green |
___________________________________________ |
Red |
___________________________________________ |
Food color |
Mixture Yes/ No |
How many dyes are in the food color? |
Blue |
________ |
________________________ |
Yellow |
________ |
________________________ |
Green |
________ |
________________________ |
Red |
________ |
________________________ |
List the food colors that is/are mixtures of dye molecules? |
Explain your choices using the results of your chromatography experiments. |
________ |
________________________________ ________________________________ |
________ |
________________________________ ________________________________ |
________ |
________________________________ ________________________________ |
________ |
________________________________ ________________________________ |
Do you think that other substances like vegetable dyes or inks could be tested using this chromatography method? Justify your answer. |
Explain briefly what would have to be done if the dyes or inks would not dissolve in water? Could chromatography still be used to separate the mixture?
Would a pure substance show more than one color or SPOT in a chromatogram? Explain |
Data and calculations for Rf valuesreturn to top of page |
If a food color contains only 1 dye, enter data for "fast dye" only. If a food color contains only 2 dyes, enter data for "fast dye" and "slow dye" only. |
|
Blue food color solvent front distance mm |
Yellow food color solvent front distance |
Green food color solvent front distance |
Red food color solvent front distance |
Distance traveled by Solvent Front all distances in mm |
___________ |
_________ |
___________ |
___________ |
Data for the "Fast Dye" in food coloring (colorin dye that travelled greatest distance) |
|
Blue food color |
Yellow food color |
Green food color |
Red food color |
Color |
|
|
|
|
Distance traveled in mm |
___________ |
_________ |
___________ |
___________ |
Rf value |
___________ |
_________ |
___________ |
___________ |
Data for the "Middle Dye"in food coloring (colorin dye that travelled intermediate distance) |
"Middle Dye" |
Blue food color |
Yellow food color |
Green food color |
Red food color |
Color |
||||
Distance traveled |
||||
Rf value |
Data for the "Slow Dye" in food coloring (color in dye that travelled shortest distance) |
Color |
||||
Distance traveled |
||||
Rf value |
How many dye colors do you observe in your chromatogram of this mixture? What is the largest possible value for Rf? |
Solvent Front Distance traveled----------------------------------------------- |
______________________ |
|
|
"Fastest Dye in mixture" ----------------------------------------------- |
|
Color----------------------------------------------- |
______________________ |
Distance traveled----------------------------------------------- |
______________________ |
Rf value----------------------------------------------- |
______________________ |
"Slowest Dye in mixture " ----------------------------------------------- |
|
Color----------------------------------------------- |
______________________ |
Distance traveled----------------------------------------------- |
______________________ |
Rf value----------------------------------------------- |
______________________ |
How does the Rf value for your "Fastest Dye" in this mixture compare to the Rf value for the same color dye molecule obtained when you tested the individual food colors? Give a numerical comparison. Does the Rf value seem to change? Are the very different or very similar?
|
|
What color is the solid that remains on your filter? What do you think is the dominant substance in this material? Was the filtration a physical or a chemical change? How can you tell the difference? Justify your answer.
|
Approximately how many teaspoons of dry solid are in your saucepan at the end of this experiment? What is the most likely identity of this solid?
|
What happened to the water that you added to the salt and pepper mixture? Was this a physical or a chemical change? Was this reversible? Justify your answer.
|
Name and describe two other examples of filtration.
|
revised October 4, 2011 Dr. Walt Volland
